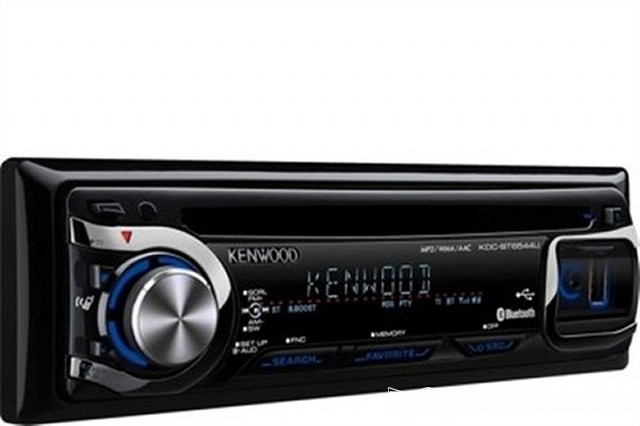

Kenwood kdc-BT6544u Ipod compatible car stereo
£110 ovno
What you see in pictures, is what you get.
Fantastic condition. And Fantastic Sound.
As new.

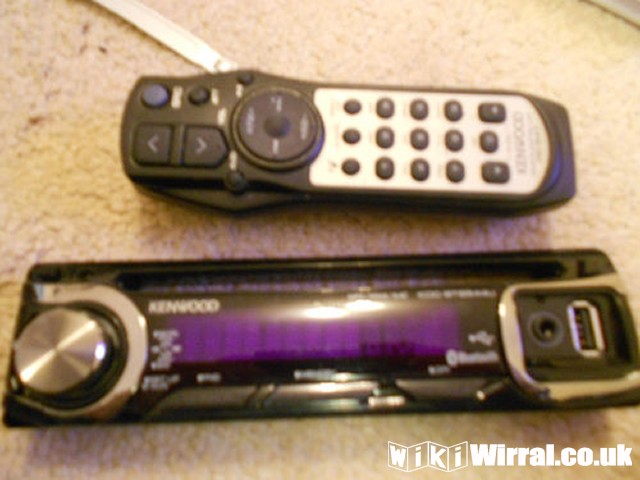

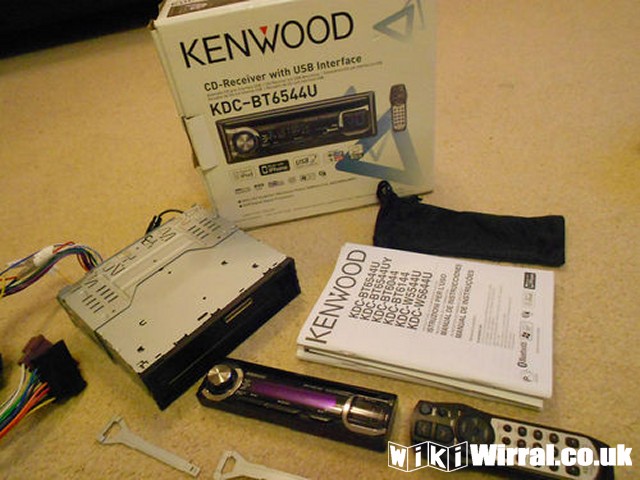

Comes complete with original box, remote control, cage and full instruction manual.
Manual Info More Info And lastly more info Kenwood’s KDC-BT6544U has the advantage of a 13-digit display and unique favorite function recall feature. This allows a shortcut to common phonebook numbers, subwoofer level control or favourite radio station etc. Installed in minutes due to its Bluetooth microphone being built into the front panel. Compatibility with most mobile phones of all makes enables calls to be made from phonebook, previous calls and missed calls. Incoming calls are indentified on-screen and even messages can be displayed from most compatible phones.
Security coded as well.
This unit comes with Direct iPod USB connection and control. For iPods/iPhones and means full in-dash search for albums, artist, tracks, with a useful alphabetical shortcut feature. iPhone music compatibility is ensured with Apple’s full licensing. Other USB music storage devices can also be connected such as a portable hard-drive, USB stick etc. A cool blue display gives easy visibility even in sunny conditions. And a high power 4x50watt built-in power amplifier will fill your car with high quality sound from any source
Key Features
Bluetooth with handsfree profile & SMS, built-in
Illuminated front AUX & USB input slide protection cover
MP3, WMA & AAC files playback with ID-3 tag display
3 preouts, 2,5V
iPod direct control with optional KCA-iP101
Works with iPhone
RDS tuner with radio-text-Plus support
High-performance, clean-reception K3I tuner
IR remote control unit included
General Features
DIN Size 1 DIN
Detachable Faceplate
Yes
Protection Case For Faceplate Yes, Soft Case
Faceplate Mechanism Full Detachable Faceplate
Security Code Function Yes
Key Illumination Blue
Rotary Encoder & Control Knob
Yes
Operation mode
Rotary + push
Music Search function
Yes
Favorite Memory function
Yes
Attenuator with Smooth Volume Return Yes, only with remote control
Touch Sensor Tone Yes
IR remote controller included
RC-547
Digital Clock (24H) Yes
All-off Select (20/40/60 minutes) Yes
Built-in Connector
Molex 16 pin
ISO connector Yes
Bluetooth unit built-in
Yes
Display Features
Display Type Fluorescent (FL) Tube Display
Display Layout 14 segments x 13 Characters
Dimmer Control 2 steps - automatic
Demo Mode
Yes
Special Character Display
No
Cosmetics features
Front/edge Dark Silver
Dress plate Dark Silver
Volume & operation knob or wheel Chrome Finish
Preset key finish Black Injection
Escutcheon finish Black Injection
Triangle Illumination Red
Volume & operation knob illumination Blue
Key illumination Blue
Illumination Effect
Yes, Bar motion effect
Tuner Features
Radio Data System
Yes
Radio Text Plus
Yes
Program Type Function (PTY)
Yes
Enhanced Other Networks Function (EON)
Yes
K3I - Clean Reception Tuner
Yes
FM Reception Yes
AM (MW/LW) Reception
Yes
Presets
24 Presets (18FM / 3LW / 3MW)
Automatic Memory Entry (AME)
Yes
Up/Down Seek Tuning
Yes
Tuning mode (Auto1 / Auto2 / Manual)
Yes
FM Stereo / Mono Selector
Yes
CD Features
CD-R/RW Compatible
Yes
MP3 Playback with ID3 Tag Display
Yes
WMA (Windows Media Audio) Playback
Yes
AAC (Advanced Audio Coding) Playback
Yes
Multi-session Disc Playback Yes
CD Text Support Yes
Supreme
Yes
D.A.C. processing 24 bit
0 bit Mute
Yes
Random Function (Track/Disc) Yes
Repeat Function (Track/Disc) Yes
Scan Function (Track/Disc) Yes
USB Features
USB terminal
Yes, front with slide protection cover
USB Type
USB1.1 / USB 2.0
MP3 playback with ID3 Tag Display Yes
WMA (Windows Media File) playback Yes
AAC (Advanced Audio Codec) playback Yes
iPod Features
Made for iPod & iPhone *
Yes
USB Digital connection (1 wire)
Music playback Yes
Music library search
Yes
Alphabet search
Yes
Skip search
Yes
Control by hand
Yes, only for iPod nano 2G/3G/4G, iPod Classic, iPod Touch & iPhone
Works with iPod Classic *
Works with iPod Video *
5th/6th generation
Works with iPod Touch *
Works with iPod Nano *
1st/2nd/3rd/4th Gen
Works with iPhone *
Yes, iPhone, iPhone 3G & iPhone 3GS
Battery charge + power control Yes
* Always update to latest Apple firmware
External Media Control Features
Dual Changer Control (CH1, CH2 & AUX)
Yes
CD Text Ready with Compatible KENWOOD Units Yes
Disc & Track Repeat Yes
Disc & Track Scan Yes
Disc & Track Random Play Yes
External Option Control Yes
2004 B.M.S. Amplifier Control Yes
iPod Control with KCA-iP500
Yes
AUX RCA Adaptor
Yes
Audio Features
Maximum Output Power 50W x 4
MOSFET Power IC Yes
Auxiliary input
Yes, Illuminated input and slide protection cover
Auxiliary Type
Mini-jack
Pre-out 3 RCA
Pre-out Output Level 2.5V
Subwoofer Reference Level Adj. Yes
Dual-Zone Source & Volume Control Yes
Dual-Zone (FRONT / REAR Switchable) Yes
Balance/Fader Control Yes
Att.(-20dB) with smooth Volume Return Yes
Sound Excellence DSP
Yes
System Q_EX (Preset & Manual Sound Control)
Yes
System E's+ (Built-in HPF & LPF)
Yes
Bluetooth General Features
Hands free Profile (HPF)
Yes
Phonebook Access Profile (PBAP)
Yes
Phone numbers hold: up to 1000 per registered phone.
Voice recognition dialing
Yes
Synchronization Profile (SYNC)
Yes
Short Message Service (SMS)
Yes
Phone device status display Yes
Audio device status display Yes
Signal strength display Yes
Remaining battery display Yes
Bluetooth phones to register 5
High-quality noise canceling microphone Yes, Built-in
Bluetooth firmware upgradeable
Yes
* depends on phone model/make
Connectivity
Changer Control (5L-Bus)
Yes
iPod I/F Control (5L-Bus)
Yes
PS Amplifier Control System (5L-Bus)
No
OEM Wired Remote Control
Yes
Power Control (P.CON) wire
Yes
2-way (Tel/Navi) mute wire
Yes
Dimmer control wire Yes
Tuner Specifications
FM Frequency Range 87.5MHz ~ 108MHz
FM Frequency Step 50kHz
FM Usable Sensitivity 0.7μV/75ohm (S/N 26dB)
FM Quieting Sensitivity 1.6μV/75ohm (S/N 46dB)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Selectivity(DIN) over 80dB (±400kHz)
FM Stereo Separation (1kHz) 35dB
MW Frequency Range 531kHz ~ 1611kHz
MW Frequency step 9kHz
MW Usable Sensitivity 25μV (S/N 20dB)
LW Frequency Range 153kHz ~ 281kHz
LW Usable Sensitivity 45μV (S/N 20dB)
CD Specifications
Laser Diode GaAIAs
Digital Filter(D/A) 8 Times Over Sampling
Digital/Analogue Converter 24 Bit
Spindle Speed 500 ~ 200rpm (CLV: 1 times)
Wow & Flutter Below Measurable Limit
Frequency Response 10Hz ~ 20kHz (±1dB)
Total Harmonic Distortion 0.01% (1kHz)
Signal to Noise Ratio 105dB (1kHz)
Dynamic Range 93dB
MP3 Decoder
Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder Compliant with Windows Media Audio
AAC Decoder AAC-LC".m4a" Files
Maximum number of files 512
Maximum number of folders 50
Max. nr. files per folder 255
Max. nr. of characters for file name 64
Max. nr. of characters for folder name 64
Max. nr. of characters for MP3-tags 30
Max. nr. of characters for WMA-tags 30
Max. nr. of characters for AAC-tags 60
USB Specifications
USB Version compatibility 1.1 / 2.0
File System FAT 16/32
Maximum Supply current 500mA
D/A Converter 24 bit
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC "m4a" Files
WAV Decode no
Audio Specifications
Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 30W x 4
Preout Level 2000mV / 10kOhm,
Preout Impedance ≤ 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
AUX Frequency Response 20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage 1200mV
AUX Input Impedance 10kOhm
Bass Tone Control 100Hz ±8dB
Middle Tone Control 1kHz ±8dB
Treble Tone Control 10kHz ±8dB
General Specifications
Operating voltage 14.4V (11 ~ 16V Allowable)
Maximum Current Consumption 10A
Dimensions (WxHxD) 182 x 53 x 155mm
Weight 1300gr
